CREAWOOD

Timeless design and excellent absorption values characterize the CREAWOOD panels. Three superposed layers of transverse and longitudinal slits generate an excellent perforation pattern of small rectangles. Due to the tongue and groove system, the panels can be strung together unlimitedly. The result is a seamless and light looking design of your wall and ceiling panelling.


Advantages

  • Available with support board in fire protection class B1/M1 (flame retardant) and euro class B
  • Easy installation with special clamps on tongue and groove
  • Large variety of design options
  • Wide-range acoustic absorption

Support board MDF
Surfaces Veneered, laminated, lacquered in RAL/NCS colors
Thickness 19 mm
Standard formats 2000, 2600, 2780, 3600, 4080 x 199 mm (Covering width = 192 mm)
Surface slitting

Axial distance: 8 mm, 12 mm, 28 mm
Groove width: 4 mm

Axial distance: 9 mm, 13 mm, 29 mm
Groove width: 3 mm

Axial distance: 10 mm, 14 mm
Groove width: 2 mm

Rear side closed or slitted
Individual solutions Acoustic fleece
Links Documentation Datasheet Installation instructions

Support board

MDF

Surfaces

Veneered, laminated, lacquered in RAL/NCS colors
Thickness 19 mm
Standard formats 2000, 2600, 2780, 3600, 4080 x 199 mm (Covering width = 192 mm)

Surface slitting

Axial distance: 8 mm, 12 mm, 28 mm
Groove width: 4 mm

Axial distance: 9 mm, 13 mm, 29 mm
Groove width: 3 mm

Axial distance: 10 mm, 14 mm
Groove width: 2 mm

Rear side closed or slitted

Individual solutions

Acoustic fleece

Links

Documentation Datasheet Installation instructions


montage creawood

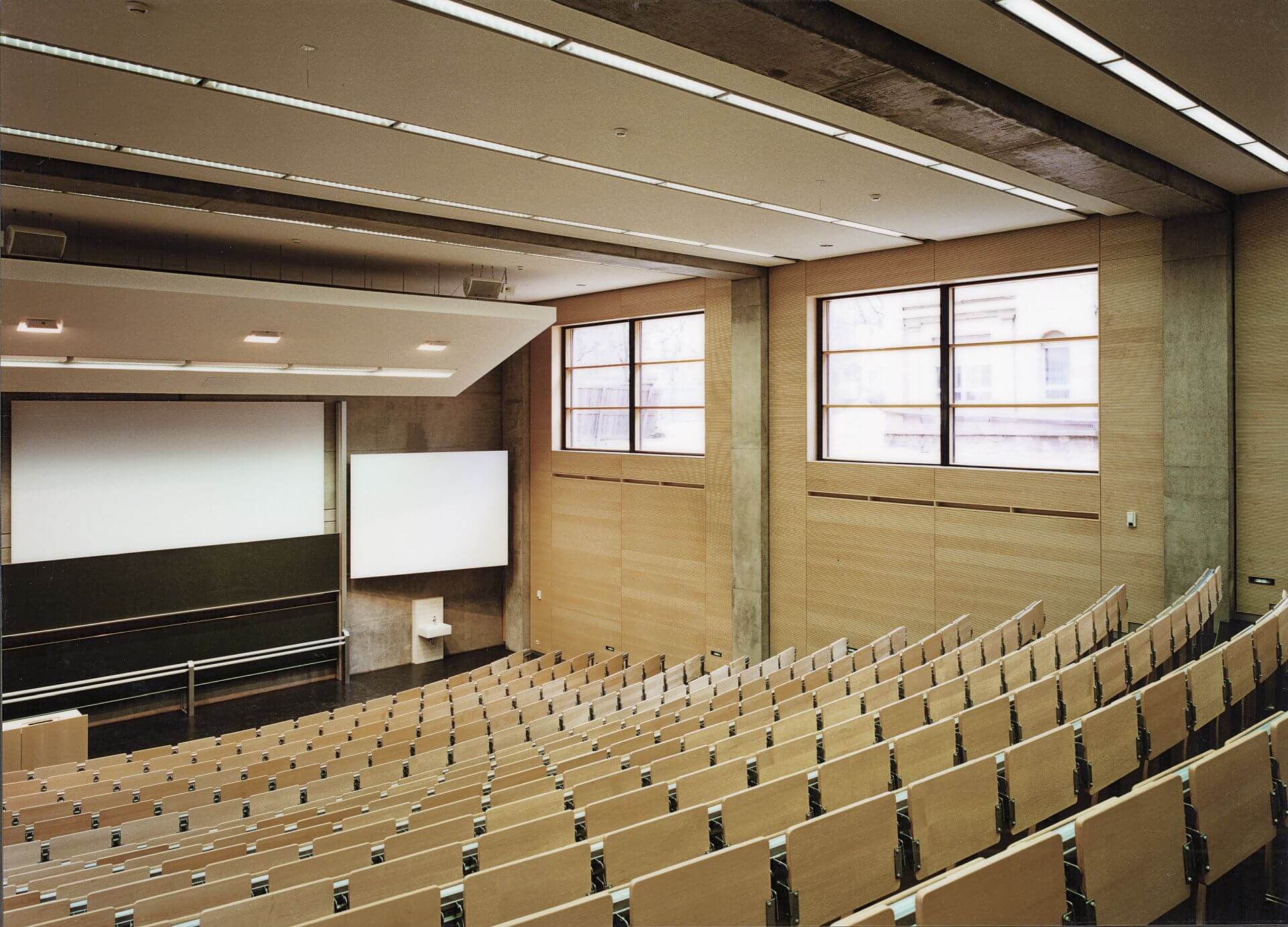

auditorium creawood

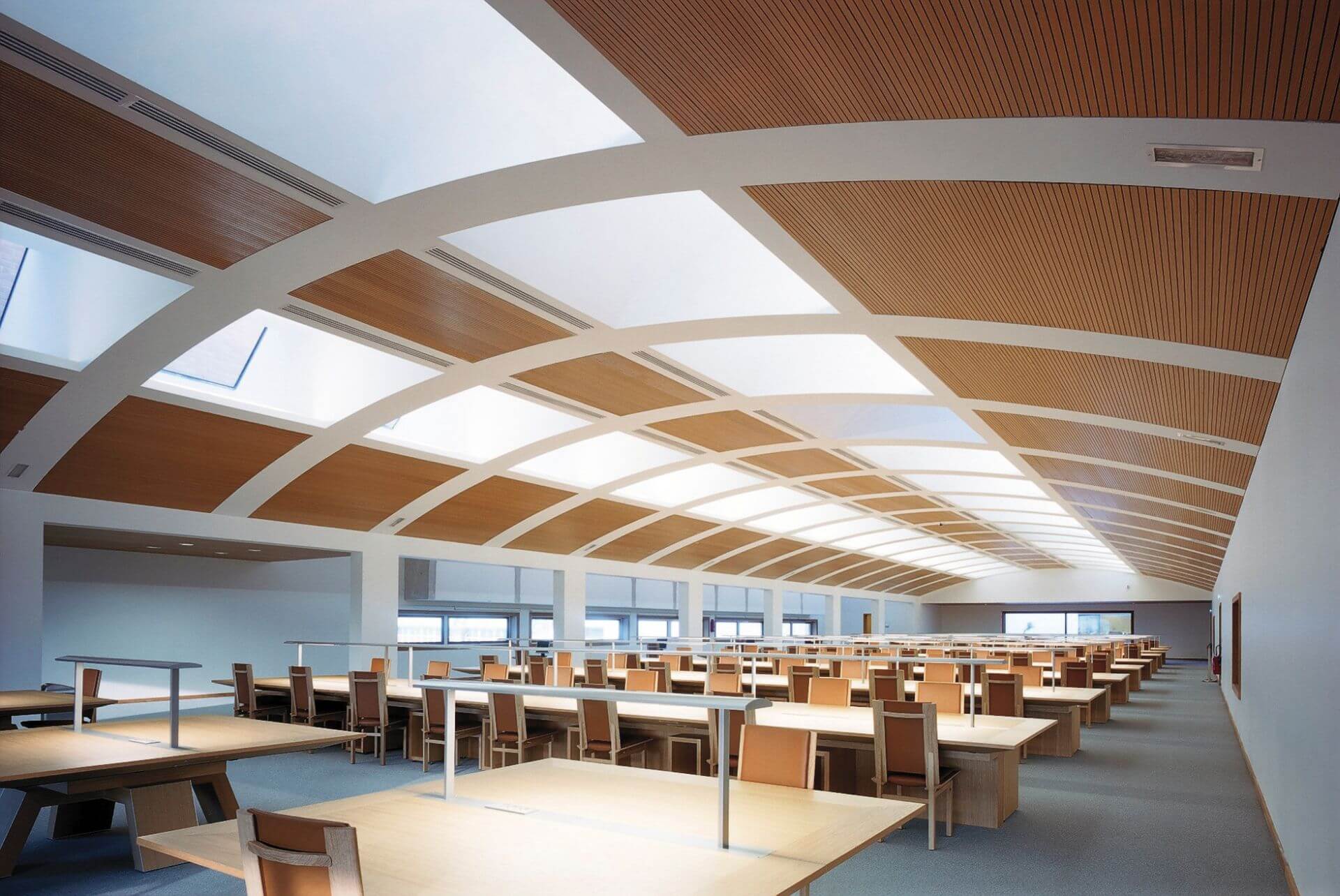

bureaux creawood
