TAVAPERF

The TAVAPERF acoustic panels impress with a variety of possibilities. The free choice of the surface, borehole diameter and borehole distance enable many optic and acoustic options. Additionally, we can meet your wishes with individual panel formats.


Advantages

  • All formats possible (considering support board formats)
  • Available with support board in fire protection class B1 (flame-retardant), euro class B and A2 (non-combustible)
  • Available with moisture resistant support boards
  • Invisible installation through blind hole bores

Support board Almost every wood panel
Surface Raw, veneered, melamine coated, laminated, lacquered in RAL/NCS colors
Thicknesses Standard thickness = 16 mm
Other thicknesses available on demand.
Formats Formats selectable
Optimum measure: 2600 x 1020 mm
Maximum measure: 5000 x 1250 mm
Surface perforation Axe distances: 8/8 or 16/16 or 32/32 mm
Borehole diameter: 1.5, 3, 4, 6, 8, 10, 12 mm
Other options on demand.
Individual solutions
  • Acoustic fleece
  • Blind hole bores as installation aid
  • Cut-outs
  • Stepped perforation
  • Edge distances
Links Documentation Installation instructions

Support board

Almost every wood panel

Surface

Raw, veneered, melamine coated, laminated, lacquered in RAL/NCS colors

Thicknesses

Standard thickness = 16 mm
Other thicknesses available on demand.

Formats

Formats selectable
Optimum measure: 2600 x 1020 mm
Maximum measure: 5000 x 1250 mm

Surface perforation

Axe distances: 8/8 or 16/16 or 32/32 mm
Borehole diameter: 1.5, 3, 4, 6, 8, 10, 12 mm
Other options on demand.

Individual solutions

Acoustic fleece
Blind hole bores as installation aid
Cut-outs
Stepped perforation
Edge distances

Links

Documentation Installation instructions


montage tavaperf

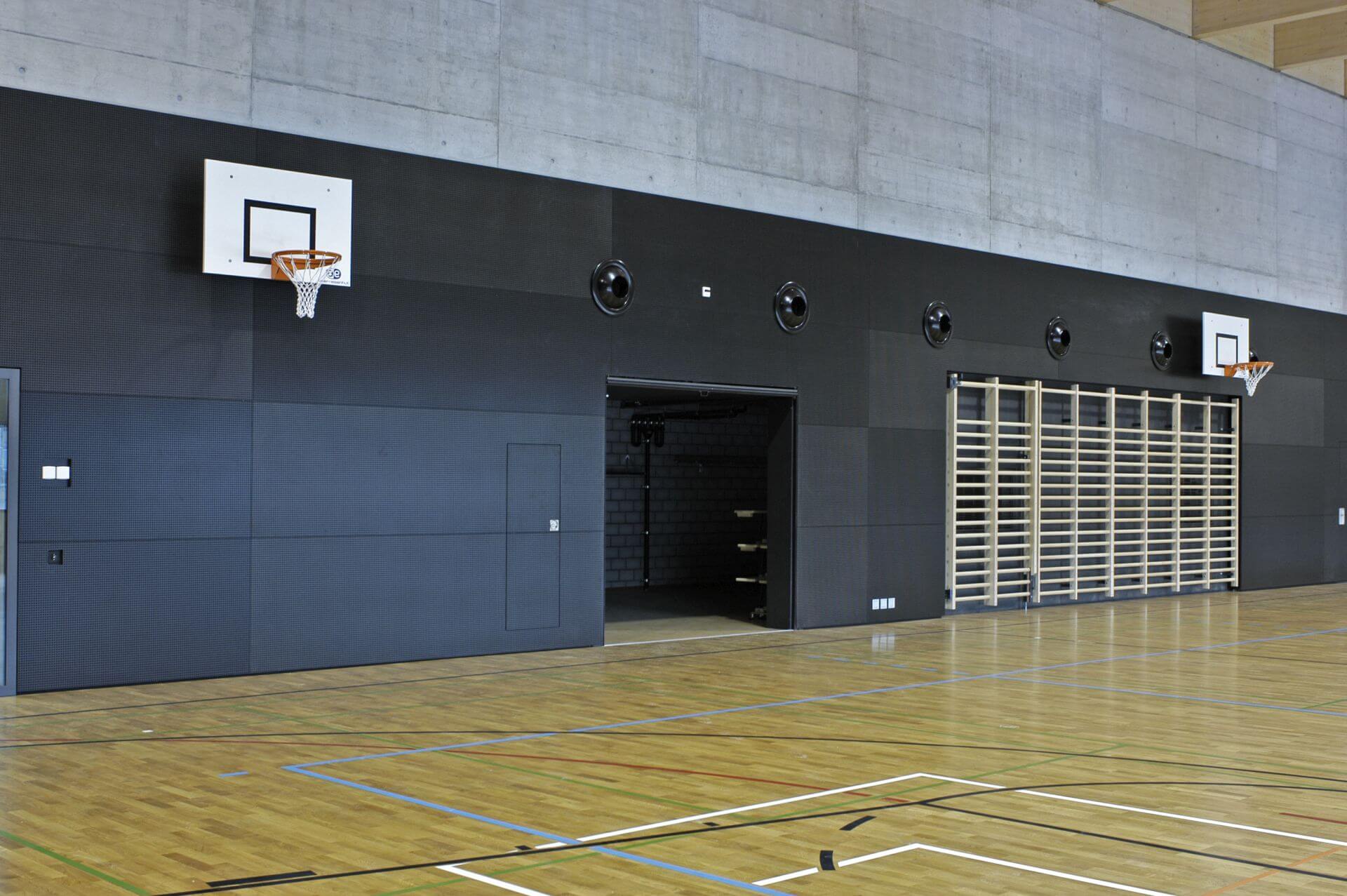

turnhalle tavaperf 2

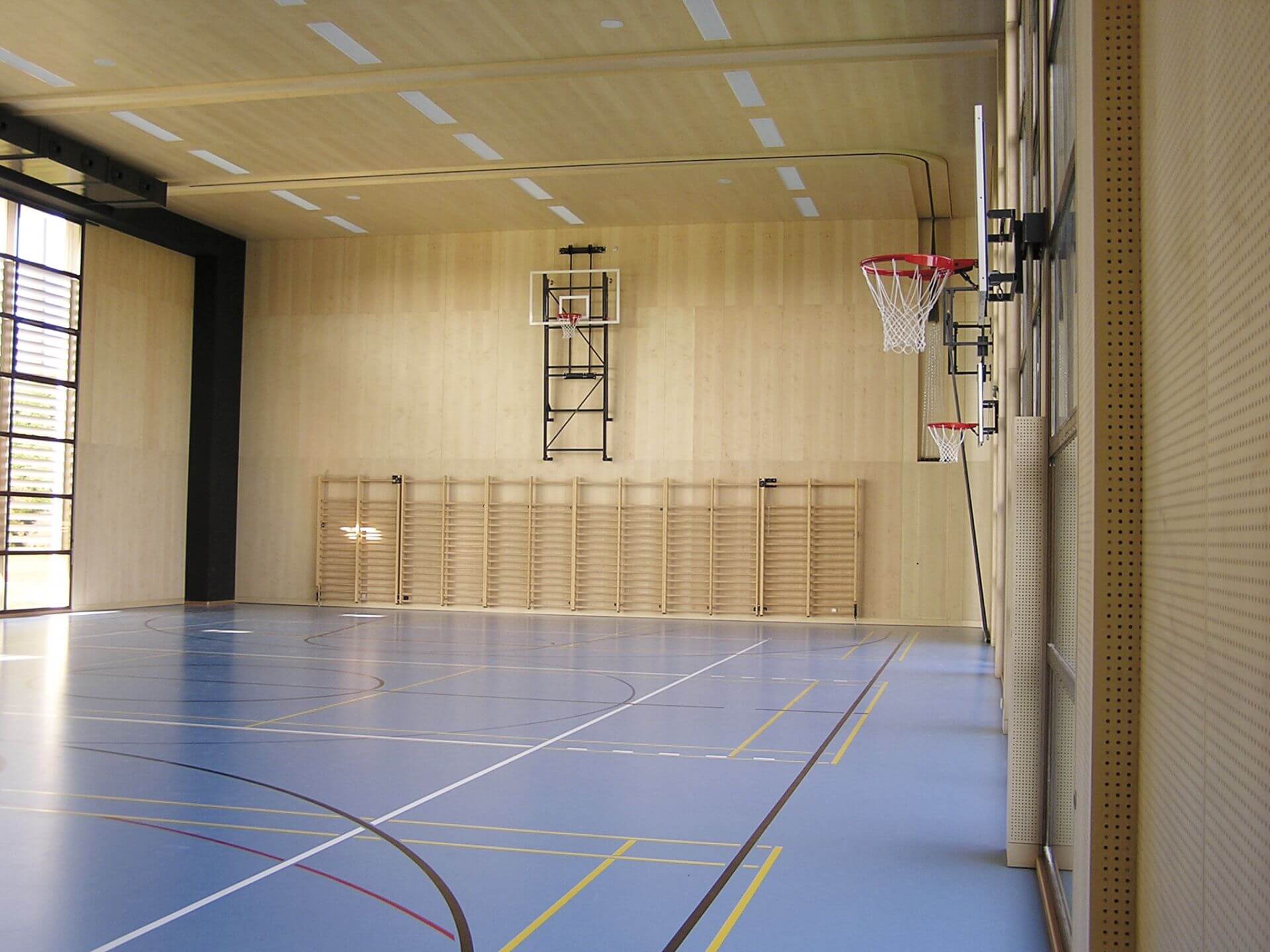

turnhalle tavaperf
